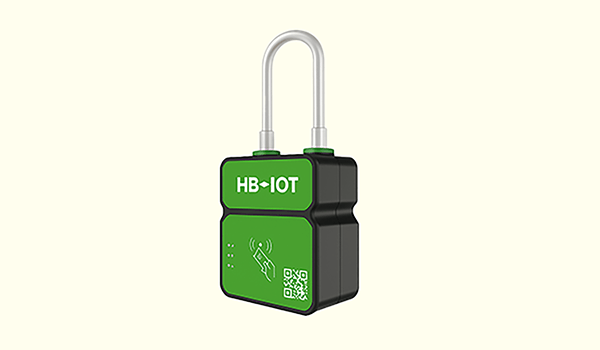

HB-A1M - Smart E Lock for Container Tracking

Advanced Electronic Container Lock

Explosion-Proof. IP67 Waterproof. RFID & Bluetooth Unlocking.

  • 4G Remote Unlocking: Unlock and monitor your lock from anywhere using SMS, GPRS, or cloud commands.
  • Multi-Layered Unlocking: Supports RFID cards, Bluetooth 4.0 via mobile app, and remote unlock via SMS/GPRS.
  • Super Long Standby: With an 8000mAh battery, it delivers up to 19 days standby time on regular usage.
  • IP67 Waterproof & Dustproof: Designed to perform reliably in extreme weather and harsh logistics environments.
  • GPS Real-Time Tracking: Built-in GPS module enables accurate global positioning for containers and cargo in transit.
  • Multi-Lock Cascade Support: Integrate multiple HB-A1Ms in a single operation system for large-scale logistics.
Catalogue Download

Product Specification

Category Specification
Model NameHB-A1M
GNSSLC76G (GPS, BEIDOU)
Positioning Sensitivity-167 dBm
Acquisition Sensitivity-147 dBm
Accuracy< 1.5 m
Hot/Cold Start< 1 s / < 28 s
Communication ModuleEC20QUEFA (4G LTE, WCDMA, GSM)
Unlock MethodsRFID (2.5cm), BLE (20m), GPRS, SMS
Battery8000 mAh, 3.7V Li-ion, 29.6 Wh
Charging Voltage / Time6V DC / ~6 hours
Standby TimeUp to 19 days (10 min interval)
Body Dimensions (L×W×H)124.5 × 67.4 × 47 mm
Chain Length300 mm
Weight544 g
MaterialFlame-retardant PC
Lock Rod Resistance1000 kg
Operating Temp / Storage Temp-30°C to +70°C / -40°C to +85°C
Humidity Tolerance5% to 95% RH (non-condensing)
IP RatingIP67 (Dust & Water Resistant)
CertificationsCE, RoHS, ATEX

Product Features

Feature Description
Feature Description
Multi-Mode Unlocking RFID, Bluetooth 4.0, GPRS, and SMS-based unlocking
Long-Lasting Battery 8000 mAh battery provides up to 19 days of standby time
Real-Time Tracking GNSS-enabled live location updates with high accuracy
Remote Access Control Unlock and monitor remotely via cloud or SMS
Rugged & Reliable Design Built with IP67 protection and flame-retardant casing for tough environments
Smart Tamper Alerts Immediate alerts on unauthorized access or forced entry
Efficient Data Communication Supports TCP/FTP/SMS protocols for fast and reliable data transfer
Wide Network Compatibility Works on 4G LTE, 3G WCDMA, and GSM networks
High Load Chain Strength 1000 kg tensile strength ensures physical robustness
Certifications Fully compliant with CE, RoHS, and ATEX safety standards

Key Benefits Of HB-A1M Smart E-Lock

1. Multi-Layer Security

  • Unlock via RFID, BLE, GPRS, or SMS for added flexibility.
  • Real-time alerts on tampering, unauthorized access, or forced unlocks.

2. Accurate Real-Time Location Tracking

  • Integrated GNSS with GPS & Beidou for precise container tracking.
  • Supports TCP/FTP/SMS protocols for fast and consistent data transmission.

3. Extended Battery Life for Long-Term Deployments

  • Equipped with an 8000 mAh Li-ion battery lasting up to 19 days.
  • Ideal for long-haul logistics, remote deployments, and containerized shipping.

4. Remote Monitoring and Control

  • Unlock or lock remotely through mobile app or backend platform.
  • Complete visibility of lock status, battery level, and GPS location.

5. Built Tough for Harsh Environments

  • IP67 waterproof and dustproof housing for outdoor, rugged use.
  • Flame-retardant body and high-temperature resilience from -30°C to +70°C.

6. Universal Network Compatibility

  • Supports 4G LTE, 3G WCDMA, and GSM bands for global communication.
  • No distance limitation when using SMS or GPRS for unlock commands.

Why Choose Tracalogic HB-A1M Smart E-Lock?

1. Trusted by Industry Leaders

Used across logistics, mining, manufacturing, and cross-border supply chains.

2. Tailored for High-Risk Cargo

Engineered for securing containers, tankers, trailers, and high-value shipments.

3. Seamless Integration

Compatible with all major tracking and telematics platforms for end-to-end monitoring.

4. Designed for Durability

Withstands extreme weather, shock, and rough handling during transit.

5. Multi-Certified Safety & Compliance

CE, RoHS, and ATEX certified for safety, environment, and explosion-proof assurance.

6. Global Support & Service

Backed by Tracalogic's reliable technical team and post-sales support network.
