AIS 140 GPS Tracking System

  • home
  • AIS 140 GPS Tracking System

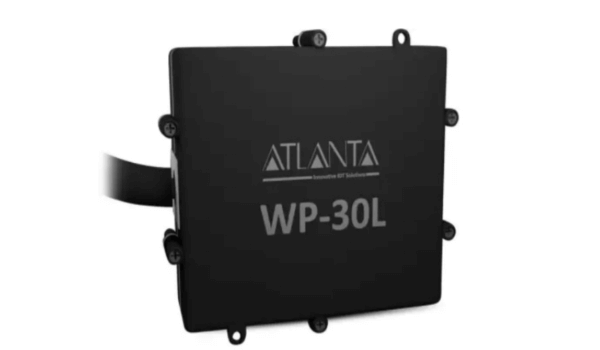

140 GPS Tracking System Front

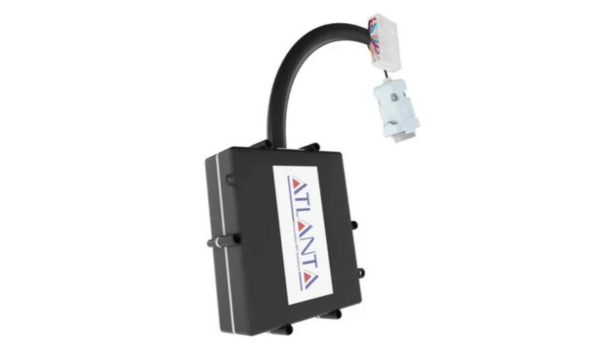

140 GPS Tracking System Side

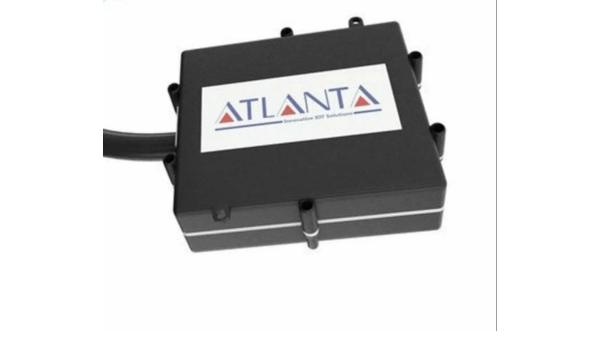

140 GPS Tracking System Back

AIS 140 GPS Tracking System

TL140 | RTO Approved AIS 140 Tracking System

AIS-140 GPS Tracker is an RTO-approved device.

  • AIS-140 Certified & RTO Approved – Complies with government regulations for commercial and public transport vehicles.
  • Real-Time GPS & IRNSS Tracking – Supports multiple satellite systems for precise location monitoring.
  • GAGAN Support – Enhances navigation accuracy.
  • Emergency SOS Button Support – Sends immediate alerts during emergencies.
  • Remote Monitoring & Control – Allows real-time vehicle tracking and status updates.
  • Tamper-Proof & Waterproof (IP67) – Resistant to dust, water, and tampering.
  • Built-in Backup Battery (1000mAh) – Ensures tracking even when disconnected from vehicle power.
Catalogue Download

Product Specifications

• Module SIMCom
• GNSS GNSS, GPS, IRNSS, GLONASS, GALILEO, BEIDOU, QZSS
• Receiver Tracking: 33
• Tracking sensitivity -165dBm
• Position accuracy < 2.5CEP
• Velocity accuracy < 0.1m/s (within +/- 15% error)
• Hot start < 1sec
• Back-up Battery < 30sec
• Warm start < 31sec
• Technology GSM
• 2G bands Quad Band GSM 850/900/1800/1900MHz / DUAL BAND (900/1800MHz)
• Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
• Data support SMS (text/data)
• Input voltage range 8 – 36V DC with overvoltage protection
• Internal Back-up battery 1000 mAh Li-Ion battery
• Dimensions | Weight 72.5 × 73 × 27.3 mm (L × W × H) | 205 g

Product Features

• Real-time Tracking Continuous tracking with updated position every 10 seconds
• Trace Playback The device provides trace history of your vehicle/asset
• Sensors Gyroscope
• Scenarios Green Driving, Over Speeding detection, DOUT Control Via Call, Immobilizer,
Excessive Idling detection, Unplug detection, Towing detection, Crash detection,
Geofence, Manual Geofence, Trip.
• Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep.
• Configuration and firmware update FOTA Web, FOTA
• SMS Configuration, Events, DOUT control, Debug.
• GPRS commands Configuration, DOUT control, Debug
• Time Synchronization GNSS
• Fuel monitoring LLS (Analog), Digital LLS (RS232)
• Ignition detection Digital Input 1
• RS232 Modes RFID, Biometric, LLS, FLS, Camera, Configurator, Debug data, NMEA

Product Applications

Car, Truck, and Bus Security, Fleet Management, and Tracking

Benefits of AIS 140 GPS Tracking System

1. Fleet Operators

  • Operational Efficiency: Real-time tracking allows for optimized route planning, fuel savings, and reduced vehicle downtime.
  • Cost Savings: Proactive vehicle maintenance and route optimization lead to lower operational costs and higher profitability.
  • Driver Accountability: Monitoring driver behavior, such as over-speeding or harsh braking, ensures safer and more responsible driving practices.

2. Government Authorities

  • Enhanced Traffic Management: Real-time data integration helps authorities manage traffic flow, reduce congestion, and respond to incidents promptly.
  • Law Enforcement: The availability of route and speed data helps in enforcing traffic laws and reducing road accidents.

3. Passengers

  • Increased Safety: The panic button system ensures immediate assistance in emergencies, making public transport safer for passengers.
  • Better Reliability: Accurate tracking improves service reliability by reducing delays and providing real-time updates to passengers.

4. Insurance Companies

  • Accurate Claims Processing: Real-time data on vehicle behavior and location helps in assessing claims accurately, reducing fraudulent claims and speeding up settlements.

Why Choose AIS 140 Tracking System?

1. Government-Approved & RTO Certified

Compliant with AIS 140 standards, ensuring your fleet meets all legal requirements for public and commercial transportation.

2. Real-Time Location Accuracy

Supports multiple satellite systems (GPS, IRNSS, GLONASS, GAGAN, BEIDOU, GALILEO) for precise and consistent location tracking under any conditions.

3.Enhanced Passenger Safety

Emergency SOS button integration enables immediate alerts to authorities, improving emergency response and overall passenger safety.

4. Smart Fleet Management

Features like geofencing, over-speed alerts, crash/towing detection, and excessive idling monitoring help streamline operations and improve driver behavior.

general questions

client frequent question

What is AIS-140 GPS Tracker and why is it important?

AIS-140 is a government-mandated standard that requires GPS tracking and emergency response systems in public transport and commercial vehicles. It ensures passenger safety, fleet monitoring, and regulatory compliance.

Is this tracker approved by the RTO?

Yes, the TL 140, AIS-140 GPS Tracker is RTO-approved and iCAT-certified, meeting all regulatory requirements for commercial vehicles.

How does the emergency SOS button work?

The device connects to emergency response systems. When the SOS button is pressed, it sends an immediate alert to authorities, ensuring quick response in case of emergencies.

Does the tracker continue working if the vehicle's power is disconnected?

Yes, the 1000mAh built-in backup battery ensures continued tracking even when the main vehicle power is disconnected.

What sensors does this device support?

The TL140 supports various sensors including:

  • Fuel monitoring (Analog & Digital LLS via RS232)
  • Driver authentication (RFID & Biometric)
  • Camera connectivity (RS232)
  • Crash & towing detection (Gyroscope & Accelerometer)
