G300P - Smart E Lock for Container Tracking

  • home
  • G300P - Smart E Lock for Container Tracking

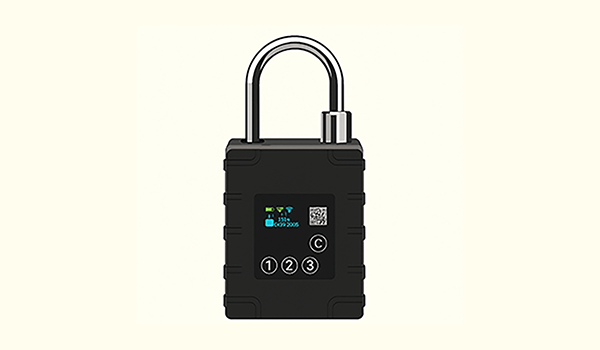

AC-DOOR Detection 6 wired GPS Tracker-TL03-1 Front

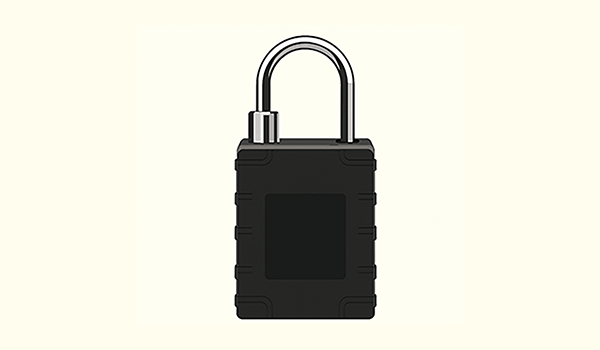

AC-DOOR Detection 6 wired GPS Tracker-TL03-2 Side

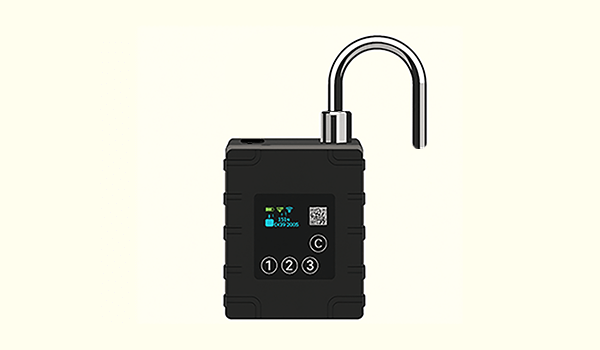

AC-DOOR Detection 6 wired GPS Tracker-TL03-3 Back

G300P - Smart E Lock for Container Tracking

Advanced Cargo Protection with Real-Time Intelligence

GPS-Enabled Smart E-Lock with RFID, OTP, Tamper Alerts & Remote Unlock

  • Temperature Monitoring: Enables real-time tracking of temperature inside containers, trailers, or refrigeration units — ideal for temperature-sensitive cargo.
  • RFID/SMS Unlock: Unique design supports secure unlocking via RFID tags or SMS password, ensuring only authorized access.
  • High-Capacity Battery: Equipped with a large battery for long operating hours, minimizing recharge frequency and supporting uninterrupted monitoring.
  • GSM Remote Monitoring: Built-in GSM module allows remote access to device status and activities through network connectivity.
  • GPS Real-Time Tracking: Built-in GPS module enables accurate global positioning for containers and cargo in transit.
  • Security & Unlock Alerts: Triggers an illegal unlocking alarm if unauthorized access is attempted, enhancing cargo safety.
Catalogue Download

Product Specification

Category Specification
Device Name Smart 4G E-Lock
Model Name TL-300P GPS E-lock
Dimensions 108mm × 86mm × 48mm
Weight 760g
GPRS Bands 850/900/1800/1900MHz
Display 0.96-inch OLED Screen
Communication 4G LTE (FDD, TDD, WCDMA, GSM)
Positioning GPS/BDS Positioning
Accuracy <10 meters
RFID Frequency: 13.56MHz, Standard: ISO14443A
Bluetooth Bluetooth 4.0 Supported
Keypad Configurable via Bluetooth or Web-Platform; 1–8 digit combination
Lock/Unlock RFID Keycard, SMS, Web-Platform, Password, Bluetooth
Alarm Low Battery Alarm, Anti-Break Alarm, Anti-Cut Alarm
Battery 9600mAh Rechargeable Li-Polymer Battery
Storage 2M Flash Memory, >8000 Blind Spot Data Storage
Environment Working Temperature: -20°C to 70°C, Waterproof Grade: IP67
Power Supply Voltage: 3.6–4.2V

Product Features

Feature Description
Remote Unlocking Unlock using RFID keycard, password, SMS, Bluetooth, or web-platform.
4G Connectivity Supports 4G LTE, WCDMA, and GSM for real-time communication and tracking.
Live GPS Tracking GPS/BDS positioning with <10 meters accuracy for real-time location monitoring.
OLED Display 0.96-inch OLED screen for clear status display and easy operation.
Anti-theft Alarms Equipped with anti-break and anti-cut alarms for enhanced security.
Low Battery Detection Low battery alert and energy-saving mode to prevent downtime.
Long Battery Life 9600mAh Li-Polymer battery offering long-lasting performance.
Waterproof Protection IP67 rating ensures protection from dust and water for outdoor use.
Multiple Unlock Methods Supports RFID keycards, password entry, SMS commands, and Bluetooth unlock.
Durable Build Aluminum alloy lock body with stainless steel shackle for added strength.
Wide Operating Range Functions in temperatures from -20°C to 70°C, suitable for diverse environments.
Data Storage Over 8000 blind spot data storage capacity for uninterrupted performance.

Key Benefits Of TL-300P GPS Smart Electronic Container Lock

1. Advanced Cargo Security

  • Tamper-proof electronic locking prevents unauthorized access.
  • Real-time alerts help stop theft before it happens.

2. Live GPS Location Tracking

  • Multi-satellite tracking ensures global coverage.
  • Provides precise location updates for every movement.

3. Remote Lock Control

  • Lock/unlock containers from the app or web dashboard.
  • Reduces manual handling and improves turnaround time.

4. Up to 6 Months Battery Life

  • High-capacity battery supports extended operations.
  • Receive low-power alerts before battery depletes.

5. Tamper & Door Status Alerts

  • Alerts triggered by shocks, vibrations, or unauthorized access.
  • Tracks door open/close status for every shipment.

6. Geo-Fencing Capabilities

  • Create custom zones and boundaries.
  • Get notified if containers leave designated routes.

7. IP67 Rugged Design

  • Dustproof and waterproof for all-weather performance.
  • Built to survive the toughest transportation environments.

8. Customs Compliance Support

  • Meets international cargo security regulations.
  • Audit-ready logs simplify customs and border clearance.

9. Full System Integration

  • Works with ERP, TMS, and fleet systems.
  • Enables centralized management of all tracking data.

10. Cloud-Based Monitoring

  • Access all device data via mobile app or browser.
  • View lock status, history, and alerts in real-time.

11. Secure Audit Logs

  • Every event—from unlock to route deviation—is logged for accountability and reporting.

12. Supply Chain Transparency

  • Provides complete visibility from loading dock to destination, improving client trust and performance.

13. Data-Driven Optimization

  • Analyze trends in movement, delays, and access events to improve efficiency.

14. Cross-Border Compatibility

  • Dual SIM and global GSM/LTE support ensure uninterrupted tracking across international routes.

Why Choose Tracalogic TL-300P GPS Smart Electronic Container Lock?

1. Engineered for End-to-End Security

The TL-300P combines intelligent locking and multi-satellite tracking into one seamless solution—giving you full control from dispatch to delivery.

2. Trusted by Industry Leaders

Used by global logistics companies, customs authorities, and high-value freight handlers for its reliability and rugged performance.

3. Remote Access, Anytime, Anywhere

Lock or unlock your container remotely via mobile or web dashboard—no need for on-site staff or manual keys.

4. Rugged IP67 Design for Harsh Conditions

Built to withstand rain, dust, shock, and extreme temperatures. TL-300P performs where traditional locks fail.

5. Real-Time Alerts & Live Monitoring

Get instant notifications for tampering, route deviations, and unauthorized access—allowing immediate action.

6. Customs & Regulatory Compliance Ready

Audit logs and tamper-proof records help meet global shipping security standards and simplify inspections.

7. Zero Complexity, Full Integration

Easily connects with your existing logistics, ERP, or fleet management systems—so your team stays in sync.

8. Scalable for Fleets of Any Size

Whether securing one container or hundreds, the TL-300P is scalable, configurable, and built for enterprise logistics.

general questions

Frequently Asked Questions (FAQs)

Q1: What is the TL-300P Smart Electronic Container Lock used for?

The TL-300P is designed to secure cargo containers and track them in real-time during transit. It prevents unauthorized access and provides live location and event updates.

Q2: How does the GPS tracking work?

The device uses GPS, GLONASS, and Beidou satellite systems for accurate real-time positioning, with updates accessible via mobile app or web dashboard.

Q3: Can the lock be controlled remotely?

Yes. You can lock or unlock the TL-300P remotely using the Tracalogic web or mobile platform, providing flexible control from anywhere.

Q4: How is tampering detected?

Built-in sensors detect shock, vibration, rope cut, and door opening attempts—triggering instant alerts to your dashboard and registered contacts.

Q5: What is the battery backup?

The TL-300P comes with a high-capacity battery that lasts up to 6 months per charge, depending on usage frequency and reporting intervals.

Q6: Is the TL-300P weatherproof?

Yes. It has an IP67 rating, meaning it's waterproof, dustproof, and built for harsh outdoor and transportation conditions.

Q7: What connectivity does it support?

It supports 4G LTE networks with automatic fallback to 3G and 2G for uninterrupted connectivity during international or rural transit.

Q8: Can the lock monitor door open/close status?

Yes. The device continuously monitors and reports door activity, ensuring visibility into every cargo access point.

Q9: Is the device compatible with my logistics system?

Yes. The TL-300P supports integration with ERP, TMS, and fleet management platforms through API connectivity.

Q10: Does it store data if the network is lost?

Yes. The device has built-in memory to log events and GPS data offline and automatically syncs once the connection is restored.
